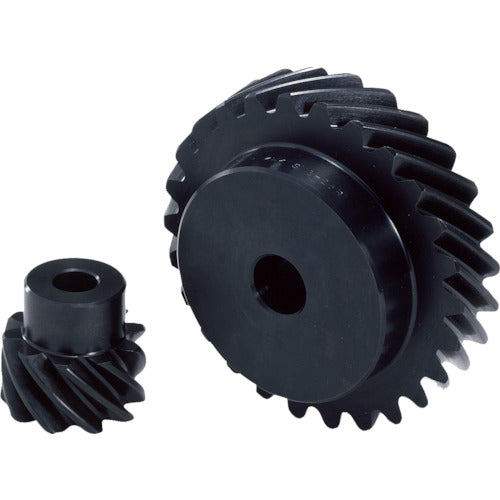

KHK screw gear SN3-13L

[Features] ● A popular screw gear. ●Additional processing of tooth surface induction hardening is possible.

[Use] ●Gears for power transmission.

[Specifications]-Module: 3-Number of teeth: 13-Standard circle diameter (mm): φ55.15-Face width (mm): 25-Hole diameter (mm): φ20-Overall length (mm): 43-Twist direction: L Shape: S1 Tip circle diameter (mm): φ61.1543 Boss length (mm): 18 Boss diameter (mm): φ45 Tap: - Keyway: -

[Specification 2] ●Gear precision: JISB1702: N9 grade ●Tooth profile: full teeth ●Pressure angle: 20° ●Heat treatment: none ●Surface treatment: blackening ●Tooth surface finish: cutting ●Gear cutting reference surface: hole (H7) Torsion angle: -45° Possibility of alteration: Possible

[Material/Finish] S45C

[Set contents/accessories]
-

【Note】
-
