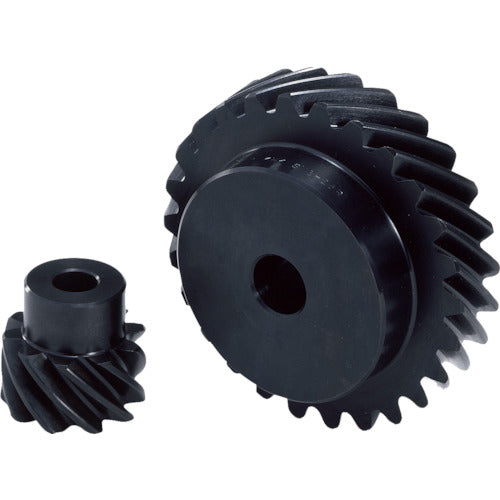

KHK screw gear SN2-26L

[Features] ● A popular screw gear. ●Additional processing of tooth surface induction hardening is possible.

[Use] ●Gears for power transmission.

[Specifications]-Module: 2-Number of teeth: 26-Standard circle diameter (mm): φ73.54-Face width (mm): 20-Hole diameter (mm): φ20-Overall length (mm): 35-Twist direction: L Shape: S1 Tip circle diameter (mm): φ77.5391 Boss length (mm): 15 Boss diameter (mm): φ60 Tap: - Keyway

[Specification 2] ●Gear precision: JISB1702: N9 grade ●Tooth profile: full teeth ●Pressure angle: 20° ●Heat treatment: none ●Surface treatment: blackening ●Tooth surface finish: cutting ●Gear cutting reference surface: hole (H7) Torsion angle: -45° Possibility of alteration: Possible

[Material/Finish] S45C

[Set contents/accessories]
-

【Note】
-
