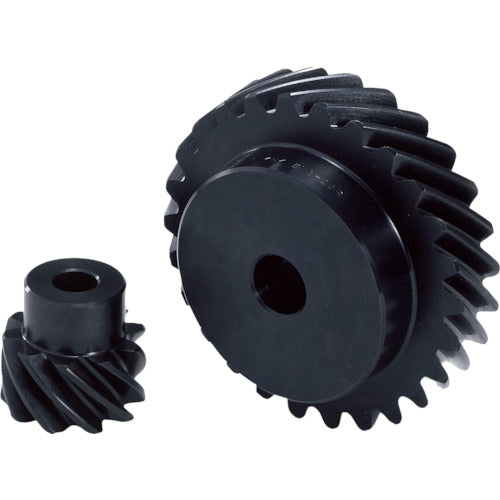

KHK screw gear SN2.5-30L

[Features] ● A popular screw gear. ●Additional processing of tooth surface induction hardening is possible.

[Use] ●Gears for power transmission.

[Specifications]-Module: 2.5-Number of teeth: 30-Standard circle diameter (mm): φ106.07-Face width (mm): 22-Hole diameter (mm): φ20-Overall length (mm): 38-Twist direction: L Shape: S1 Tip circle diameter (mm): φ111.066 Boss length (mm): 16 Boss diameter (mm): φ80 Tap: - Keyway: -

[Specification 2] ●Gear precision: JISB1702: N9 grade ●Tooth profile: full teeth ●Pressure angle: 20° ●Heat treatment: none ●Surface treatment: blackening ●Tooth surface finish: cutting ●Gear cutting reference surface: hole (H7) Torsion angle: -45° Possibility of alteration: Possible

[Material/Finish] S45C

[Set contents/accessories]
-

【Note】
-
