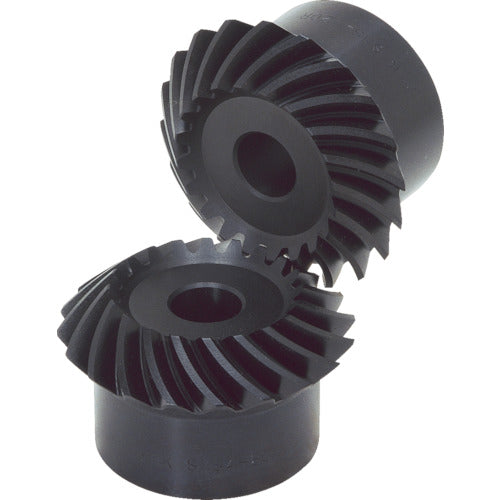

KHK spiral miter SMS 1.5-30R

[Features]● As a popular spiral miter product, it has a large number of modules and teeth, and has applicability.

[Use] ●Gears for power transmission.

[Specifications] - Module: 1.5 - Number of teeth: 30 - Standard circle diameter (mm): φ45 - Assembly distance (mm): 43 - Hole diameter (mm): φ10 - Overall length (mm): 28.11 - Face width (mm) : 10 ● Shape: B3 ● Tip circle diameter (mm): φ46.84 ● Hole length (mm): 25 ● Boss length (mm): 16 ● Boss diameter (mm): φ36 ● Twisting direction: R Tap: - Key groove: - Pressing surface diameter: 25.72 Tooth surface hardness

[Specification 2] ●Gear accuracy: JISB1704: 1978: Grade 4 ●Tooth profile: Gleason ●Pressure angle: 20° ●Heat treatment: Tooth surface induction hardening ●Tooth number ratio: 1 ●Surface treatment: Blackening ●Tooth surface finish: Cutting Reference plane for gear cutting: Hole Torsion angle: -35 Possibility of alteration: Possible

[Material/Finish] S45C

[Set contents/accessories]
-

【Note】
-
