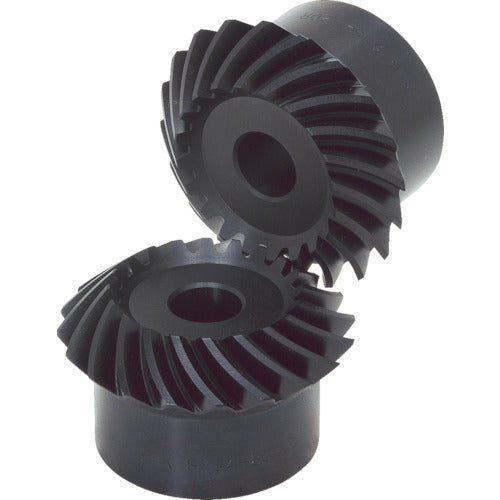

KHK spiral miter SMS 1.5-25R

[Features]● As a popular spiral miter product, it has a large number of modules and teeth, and has applicability.

[Use] ●Gears for power transmission.

[Specifications] - Module: 1.5 - Number of teeth: 25 - Standard circle diameter (mm): φ37.5 - Assembly distance (mm): 34 - Hole diameter (mm): φ10 - Total length (mm): 22.14 - Face width ( mm): 9 ● Shape: B3 ● Tip circle diameter (mm): φ39.31 ● Hole length (mm): 19 ● Boss length (mm): 11.5 ● Boss diameter (mm): φ30 ● Twisting direction: R ● Tap: - ● Keyway: - ● Holding surface diameter: 19.54 ● Tooth surface hardness

[Specification 2] ●Gear accuracy: JISB1704: 1978: Grade 4 ●Tooth profile: Gleason ●Pressure angle: 20° ●Heat treatment: Tooth surface induction hardening ●Tooth number ratio: 1 ●Surface treatment: Blackening ●Tooth surface finish: Cutting Reference plane for gear cutting: Hole Torsion angle: -35 Possibility of alteration: Possible

[Material/Finish] S45C

[Set contents/accessories]
-

【Note】
-
