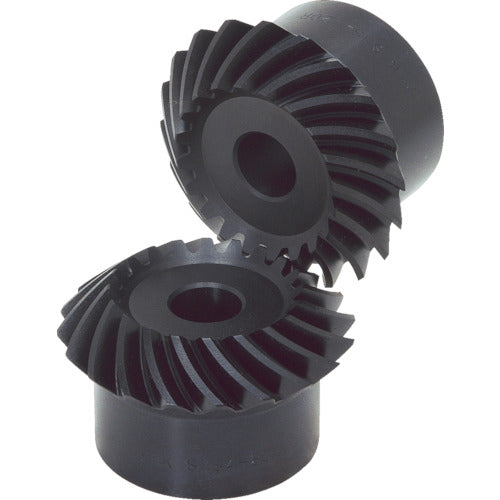

KHK spiral miter SMS 1.5-20R

[Features]● As a popular spiral miter product, it has a large number of modules and teeth, and has applicability.

[Use] ●Gears for power transmission.

[Specifications] - Module: 1.5 - Number of teeth: 20 - Standard circle diameter (mm): φ30 - Assembly distance (mm): 30 - Hole diameter (mm): φ8 - Overall length (mm): 21.18 - Face width (mm) : 8 ● Shape: B3 ● Tip circle diameter (mm): φ31.74 ● Hole length (mm): 19 ● Boss length (mm): 13 ● Boss diameter (mm): φ26 ● Twisting direction: R Tap: - Key groove: - Pressing surface diameter: 15.37 Tooth surface hardness

[Specification 2] ●Gear accuracy: JISB1704: 1978: Grade 4 ●Tooth profile: Gleason ●Pressure angle: 20° ●Heat treatment: Tooth surface induction hardening ●Tooth number ratio: 1 ●Surface treatment: Blackening ●Tooth surface finish: Cutting Reference plane for gear cutting: Hole Torsion angle: -35 Possibility of alteration: Possible

[Material/Finish] S45C
