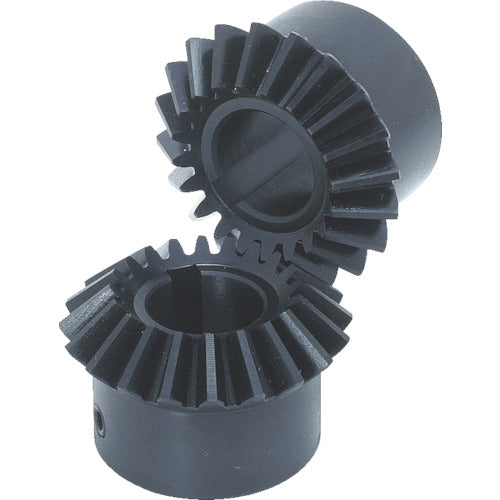

KHK completed miter SMA1.5-25

[Features] ● Completed product that can be used without additional work.

[Use] ●Gears for power transmission.

[Specifications] - Module: 1.5 - Number of teeth: 25 - Standard circle diameter (mm): φ37.5 - Assembly distance (mm): 34 - Hole diameter (mm): φ12 - Total length (mm): 22.25 - Face width ( mm): 9 ● Shape: BK ● Tip circle diameter (mm): φ39.62 ● Hole length (mm): 19 ● Boss length (mm): 11.5 ● Boss diameter (mm): φ30 ● Tap: M5 ● Key groove: 4 x 1.8 ● Holding surface diameter: 19.54

[Specification 2] ●Gear accuracy: JISB1704: 1978: Grade 4 ●Tooth profile: Gleason ●Pressure angle: 20° ●Heat treatment: Tooth surface induction hardening ●Tooth number ratio: 1 ●Tooth surface hardness: 50 to 60HRC ●Surface treatment: Black Dyed -Tooth surface finish: Cutting -Gear cutting reference surface: hole (H7) -Additional machining: Impossible

[Material/Finish] S45C

[Set contents/accessories]
-

【Note】
-
