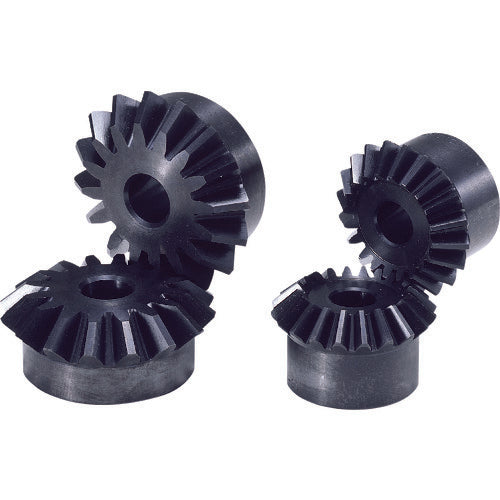

KHK Miter SM6-20

[Features] ● Popular straight miter product, used by many customers.

[Use] ●Gears for power transmission.

[Specifications] - Module: 6 - Number of teeth: 20 - Standard circle diameter (mm): φ120.00 - Assembly distance (mm): 104 - Hole diameter (mm): φ28 - Overall length (mm): 67.67 - Face width ( mm): 30 ● Shape: B3 ● Tooth ratio: 1 ● Tip circle diameter (mm): φ128.48 ● Hole length (mm): 60 ● Boss length (mm): 34 ● Boss diameter (mm) : φ100●Tap:-●Keyway:-●Pressing surface diameter: 67.15●Tooth ratio: 1

[Specification 2] ● Gear accuracy: JIS B 1704: 1978: Grade 3 ● Tooth surface hardness: (194HB or less) ● Tooth profile: Gleason ● Surface treatment: Blackening ● Pressure angle: 20° ● Tooth surface finish: Cutting ● Gear cutting Reference surface: hole (H7) Heat treatment: none Torsion angle: 0 Alteration possibility: possible

[Material/Finish] S45C
