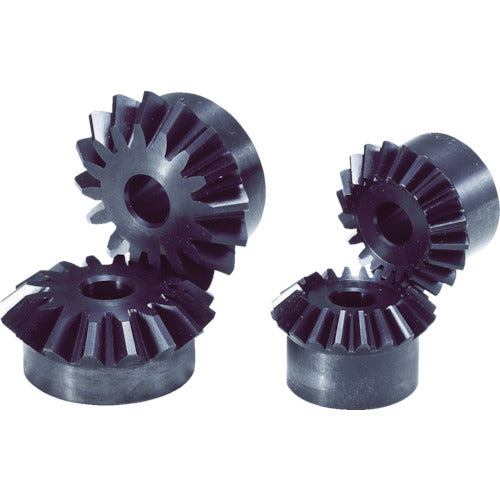

KHK miter SM1.5-25

[Features] ● Popular straight miter product.

[Use] ●Gears for power transmission.

[Specifications] - Module: 1.5 - Number of teeth: 25 - Standard circle diameter (mm): φ37.5 - Assembly distance (mm): 34 - Hole diameter (mm): φ10 - Overall length (mm): 22.25 - Face width ( mm): 9 ● Shape: B3 ● Tip circle diameter (mm): φ39.62 ● Hole length (mm): 19 ● Boss length (mm): 11.5 ● Boss diameter (mm): φ30 ● Tap: - - Key groove: - - Pressing surface diameter: 19.54

[Specification 2] ●Gear accuracy: JISB1704: 1978: Grade 3 ●Tooth profile: Gleason ●Pressure angle: 20° ●Heat treatment: none ●Tooth ratio: 1 ●Tooth surface hardness: (194HB or less ●Surface treatment: Black dye Surface finish: cutting ●Gear cutting reference surface: hole (H7) ●Additional machining: possible

[Material/Finish] S45C

[Set contents/accessories]
-

【Note】
-
