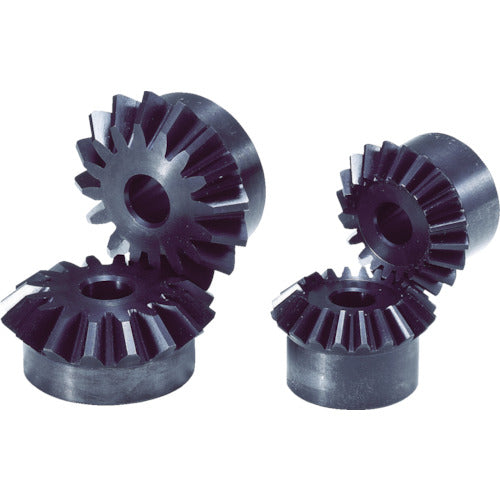

KHK miter SM1.25-30

[Features] ● Popular straight miter product.

[Use] ●Gears for power transmission.

[Specifications] - Module: 1.25 - Number of teeth: 30 - Standard circle diameter (mm): φ37.5 - Assembly distance (mm): 36 - Hole diameter (mm): φ10 - Total length (mm): 23.47 - Face width ( mm): 8 ● Shape: B3 ● Tip circle diameter (mm): φ39.27 ● Hole length (mm): 21 ● Boss length (mm): 13.5 ● Boss diameter (mm): φ30 ● Tap: - - Key groove: - - Pressing surface diameter: 22.37

[Specification 2] ●Gear accuracy: JISB1704: 1978: Grade 3 ●Tooth profile: Gleason ●Pressure angle: 20° ●Heat treatment: none ●Tooth ratio: 1 ●Tooth surface hardness: (194HB or less ●Surface treatment: Black dye Surface finish: cutting ●Gear cutting reference surface: hole (H7) ●Additional machining: possible

[Material/Finish] S45C

[Set contents/accessories]
-

【Note】
-
