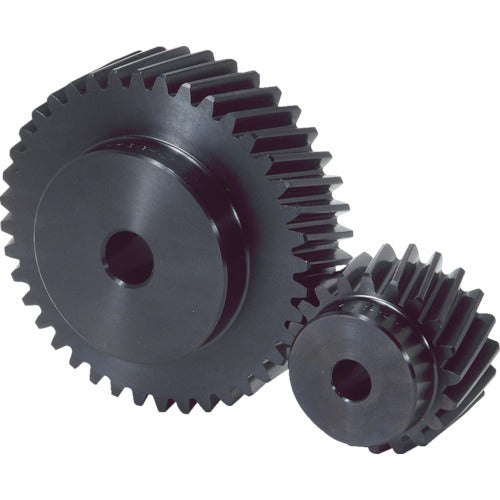

KHK helical gear SH2-15R

[Features]- Since the meshing ratio is larger than that of SS spur gears, it is effective in reducing noise and vibration.

[Use] ●Gears for power transmission.

[Specifications]-Number of teeth: 15-Standard circle diameter (mm): φ31.06-Hole diameter (mm): φ12-Overall length (mm): 35-Shape: S1-Tip circle diameter: 35.0583-Boss length: 10 ● Boss diameter: 24 ● Face width (mm): 25 ● Module: 2 ● Twisting direction: R ● Tap: - ● Keyway: - ● Tip circle diameter (mm): φ35.0583 ● Boss length (mm ): 10 Boss diameter (mm): 24

[Specification 2] ●Gear accuracy: JISB1702-1N8 grade ●Tooth profile: full teeth ●Pressure angle: 20° ●Heat treatment: none ●Tooth surface hardness: (194HB or less) ●Surface treatment: blackening ●Tooth surface finish: cutting ●Tooth Cutting reference plane: Hole (H7) Torsion angle: -15° Possibility of additional machining: Possible

[Material/Finish] S45C

[Set contents/accessories]
-

【Note】
-
