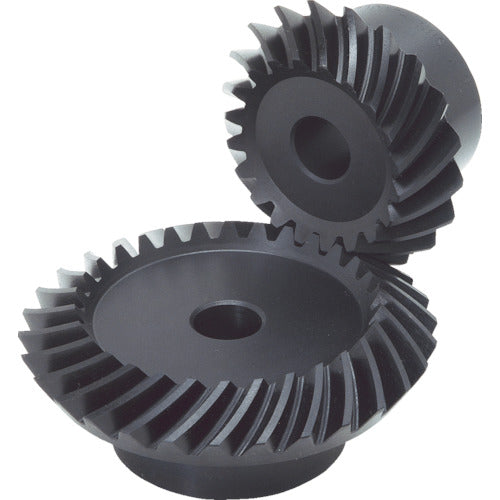

KHK Spiral Bevel Gear S BS 4-2030L

[Features] ●As a popular type of spiral bevel gear, we have a wide range of modules and tooth ratios available.

[Application] ●Gears for power transmission.

[Specifications] ●Tooth ratio: 1.5 ●Number of teeth: 20 ●Diameter of reference circle (mm): φ80 ●Tooth width (mm): 20 ●Hole diameter (mm): φ20 ●Total length (mm): 48.17 ●Shape: B3 ●Module: 4 ●Assembly distance (mm): 90 ●Boss diameter (mm): φ60 ●Boss length (mm): 23.33 ●Twist direction: L ●Tooth tip circle diameter (mm): φ87.34 ●Hole length (mm): 43 ●Covering surface diameter: 46.89 ●Key groove: - ●Tap: -

[Specification 2] ● Gear precision: JIS B1704: 1978: Grade 4 ● Tooth shape: Gleason ● Pressure angle: 20° ● Heat treatment: High-frequency hardening of the tooth surface ● Tooth surface hardness: 50 to 60 HRC ● Surface treatment: Blackening ● Tooth surface finish: Cutting ● Gear cutting reference surface: Hole ● Twist angle: -35 ● Additional processing possible: Yes

[Material/Finish] ●S45C
