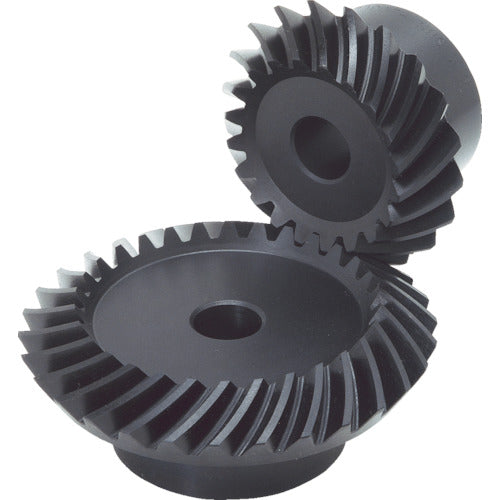

KHK spiral bevel gear S BS 2.5-1545L

[Features]● As a popular spiral bevel gear, we have many modules and gear ratios.

[Use] ●Gears for power transmission.

[Specifications] ● Tooth ratio: 3 ● Number of teeth: 15 ● Standard circle diameter (mm): φ37.5 ● Tooth width (mm): 20 ● Hole diameter (mm): φ12 ● Total length (mm): 38.27 ● Shape : B3 ● Module: 2.5 ● Assembly distance (mm): 75 ● Boss diameter (mm): φ30 ● Boss length (mm): 17.5 ● Torsion direction: L ● Tip circle diameter (mm): φ43.36 ● Hole Length (mm): 37 ● Holding surface diameter: 20.5089 ● Keyway: - ● Tap: -

[Specification 2] ● Gear accuracy: JISB1704: 1978: Grade 4 ● Tooth profile: Gleason ● Pressure angle: 20° ● Heat treatment: Tooth surface induction hardening ● Tooth surface hardness: 50 to 60 HRC ● Surface treatment: Black dye ● Tooth surface finish: Cutting ● Gear cutting reference surface: Hole ● Torsion angle: -35 ● Possibility of additional machining: Possible

[Material/Finish] S45C

[Set contents/accessories]
-

【Note】
-
