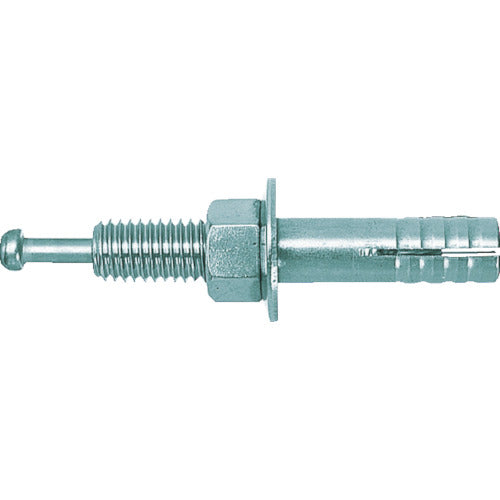

Unika rooty anchor SC type (stainless steel) SC-2015

[Features] ● Reliable construction is possible with the simple work of driving a pin. ●It is made of rust-resistant all stainless steel. ●Can be used in a wide range of locations even in areas with high humidity. ● Reliable construction can be done with the simple work of driving a pin. ●The completion of driving can be confirmed just by looking at the pin.

[Uses] ● Construction, electrical, hygiene, air-conditioning work, installation of signboards and chairs, machine installation work, etc.

[Specifications] - Screw designation: M20 - Overall length (mm): 150 - Screw length (mm): 50 - Maximum tensile load (kN): 51.8 - Pilot hole diameter (mm): 21.5 - Embedding depth (mm) ): 80

[Specification 2] boxed

[Material/Finish] Stainless steel

[Set contents/accessories]
-

[Caution] ●The maximum tensile load is the value when the concrete strength is Fc21N/[[MM2]].
