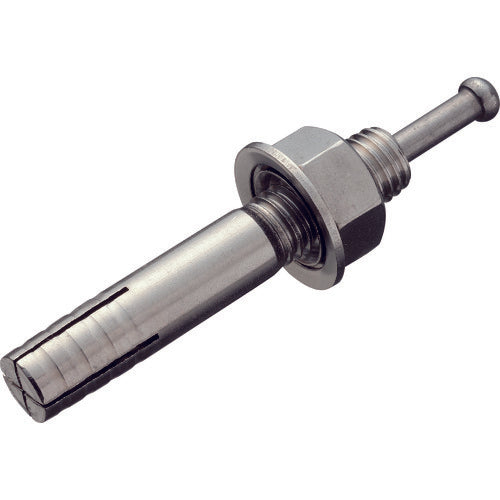

Sanko All Anchor SC Stainless Steel Screw Nominal M16 Length 120mm

[Features] ●Since the construction is done by simply driving the core rod, the construction completion can be seen at a glance. ●Since the diameter of the main body and the threaded portion is the same, drilling into concrete can be done with a small diameter. ●It can be installed directly from the top of the attachment. ●As it is a nut tightening type, it is removable.

[Applications] ● For construction work, civil engineering work, electrical work, mechanical equipment work, etc. ●For construction work and equipment work where rust prevention is desired.

[Specifications] - Screw designation: M16 - Overall length (mm): 120 - Screw length (mm): 40 - Maximum tensile load (kN): 29.9 - Pilot hole diameter (mm): 17.0 - Embedding depth (mm) ): 60

[Specification 2] boxed

[Material/Finish] Stainless steel (SUS304 series)

[Set contents/accessories]
-

[Caution] ●The maximum tensile load is the value when the concrete strength is Fc21N/m [[M2]].
