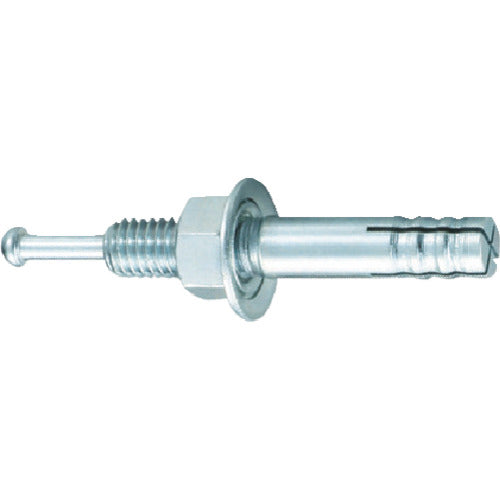

Yunika Rooty Anchor SC-1010

[Features] ● Reliable construction is possible with the simple work of driving a pin. ●It is made of rust-resistant all stainless steel. ●Can be used in a wide range of locations even in areas with high humidity. ● Reliable construction can be done with the simple work of driving a pin. ●The completion of driving can be confirmed just by looking at the pin.

[Uses] ● Construction, electrical, hygiene, air-conditioning work, installation of signboards and chairs, machine installation work, etc.

[Specifications] - Screw designation: M10 - Overall length (mm): 100 - Screw length (mm): 30 - Maximum tensile load (kN): 14.5 - Pilot hole diameter (mm): 10.5 - Embedding depth (mm) ): 40 Tightening torque (N m)

[Specification 2] boxed

[Material/Finish] Stainless steel

[Set contents/accessories]
-

[Caution] ●The maximum tensile load is the value when the concrete strength is Fc21N/[[MM2]].
