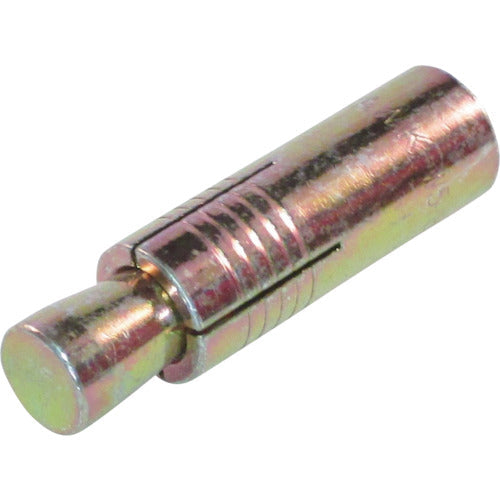

HAWK Cut Anchor CA Type Steel

[Features]
It is a representative product of the "female screw type".

[Use]
for concrete. For installation of construction, light gauge steel, temporary scaffolding, civil engineering, electricity, air conditioning, machinery, signboards, etc.

【specification】
Nominal Thread: W5/8
Total length (mm): 60
Outer diameter (mm): 21.4
Thread length (mm): 24
Drill diameter (mm): 22.0
Maximum tensile load (kN): 41.0

[Specification 2]
-

[Material/Finish]
steel
electro galvanized

[Set contents/accessories]
-

【caution】
The maximum tensile load is the value when the concrete strength is Fc18N/[[MM2]].
