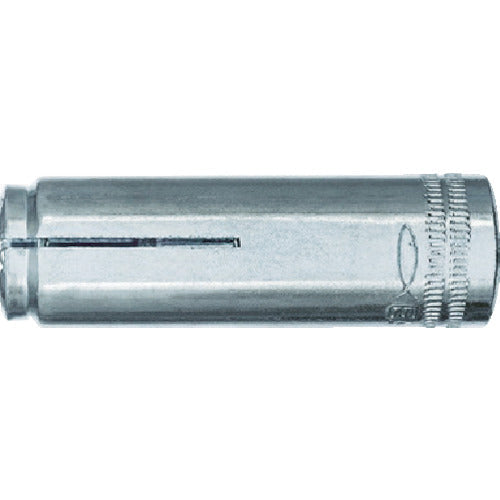

Fisher SX plug SX 10x50 (50 pieces)

[Features]
Strong grip with 4-way expansion and fixation.
Corresponds to the revision of the "Notice on measures to prevent overturning" of hot water supply equipment.

[Use]
Construction on concrete, ALC, stone, brick, hollow base material, and gypsum board.

【specification】
Nominal diameter (mm): 10
Length (mm): 50
Drilling depth (mm): 70
Maximum tensile load (kN): 6.34
Applicable screws (mm): 6 to 8
Prepared hole diameter (mm) Concrete: 10
Pilot hole diameter (mm) ALC: 10

[Specification 2]
Compatible screws: wood screws, tapping screws
Boxed

[Material/Finish]
Polyamide resin PA6 (Nylon 6)

[Set contents/accessories]
-

【caution】
The maximum tensile load is the value when the concrete strength is Fc20N/m [[M2]].
