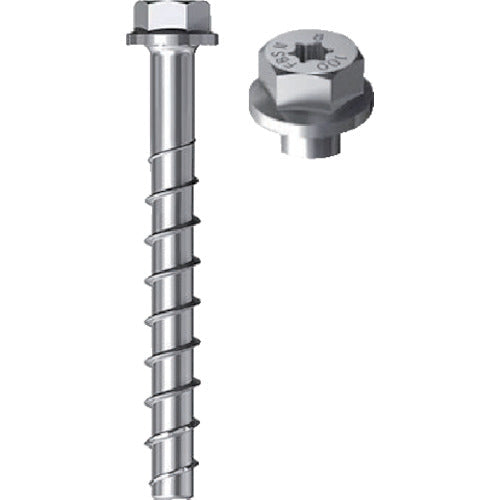

Fisher concrete screw type anchor F BS 2 8 x 100 50/35 US TX (50 pieces)

[Features]
A screw-in type high-strength anchor that does not require driving.
Can be set with an impact wrench.
It is easy to remove after casting and can be used for temporary construction.

[Use]
For concrete and dense stone.
Mounting on various racks.
Equipment work.
Handrail exterior construction, etc.

【specification】
Nominal Thread: M8
Total length (mm): 110
Thread length (mm): 100
Width across flats (mm): 13
Embedded depth (mm): 65
Pilot hole diameter (mm): 8
Maximum tensile load (kN): 23.42
Maximum shear load (kN): 24.10

[Specification 2]
Boxed

[Material/Finish]
steel
Surface treatment: galvanized

[Set contents/accessories]
-

【caution】
Removal to the same hole is up to 2 times.
When reusing, use a check gauge and only usable items can be reused.
