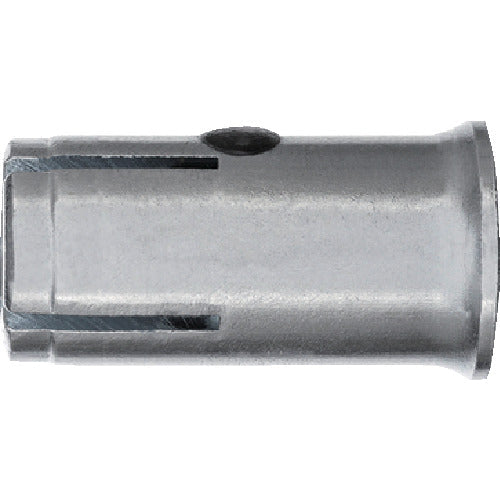

Fisher driven metal anchor EA2 M12X25 (25 pieces)

[Features]
An internal cone drive type female screw anchor.
After setting and expanding the anchor with a combination of HAMMER CASTER and a special setting tool (EHS Plus Setting Tool), the construction completion can be confirmed by being engraved on the collar of the main unit.

[Use]
For concrete and stone.

【specification】
Nominal Thread: M12
Total length (mm): 25
Thread length (mm): 14
Drill diameter (mm): 15
Maximum tensile load (kN): 1.9
Pilot hole diameter (mm): 15
Drilling depth (mm): 27
Bolt Penetration Depth (mm): 12-14

[Specification 2]
Boxed
Internal cone driven metal anchor

[Material/Finish]
steel

[Set contents/accessories]
-

【caution】
-
