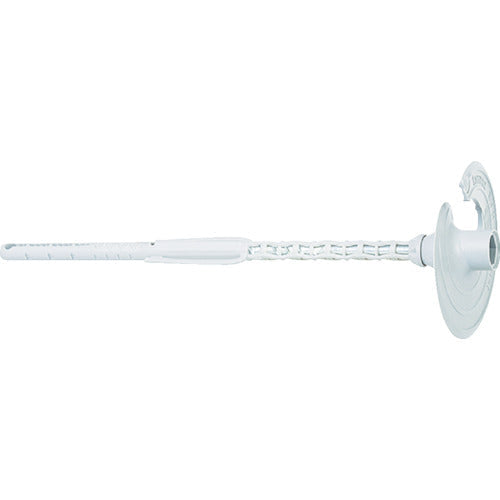

Fisher external insulation anchor termoz SV-2 ecotwist 30
お気に入り機能をご利用いただくにはログインが必要です。
閉じる
【order ID】8285609
【basic item number】530355
【brand name】Fisher
【minimum order quantity】1Box
【packages】1
【manufacturer name】fischer holding GmbH & Co.
【Country of origin】Germany
【Weight】4532G
[Features]
Fixed in insulation, no discs on the surface.
[Use]
For ordinary concrete, brick, lightweight porous concrete, and ALC.
【specification】
Length (mm): 232
Drill diameter (mm): 8
Minimum drilling depth (mm): insulation thickness + 105
Disk diameter (mm): 66
[Specification 2]
screw-in
Drill diameter: 8mm
Disc diameter: 66mm
Effective embedment depth: minimum 35mm
Boxed
[Material/Finish]
PA6 + glass fiber
[Set contents/accessories]
-
【caution】
-
Fixed in insulation, no discs on the surface.
[Use]
For ordinary concrete, brick, lightweight porous concrete, and ALC.
【specification】
Length (mm): 232
Drill diameter (mm): 8
Minimum drilling depth (mm): insulation thickness + 105
Disk diameter (mm): 66
[Specification 2]
screw-in
Drill diameter: 8mm
Disc diameter: 66mm
Effective embedment depth: minimum 35mm
Boxed
[Material/Finish]
PA6 + glass fiber
[Set contents/accessories]
-
【caution】
-
