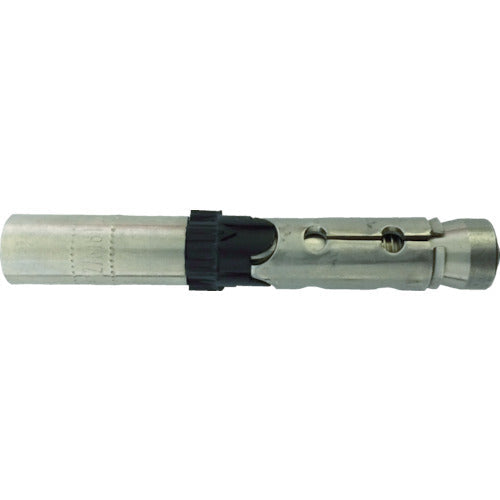

Fisher bolt anchor FH2 15/M10 I (25 pieces)

[Features]
The functional principle of using a hexagon wrench allows for rapid deformation expansion and comfortable upward installation.
Suitable for pre-attachment.
Metric internal thread for optimal adaptation to match the fixture.

[Use]
For concrete and dense stone.
Mounting on various racks.
Equipment work.
Handrail exterior construction, etc.

【specification】
Nominal Thread: M10
Total length (mm): 90
Thread length (mm): 25
Embedded depth (mm): 95
Drill diameter (mm): 15
Pilot hole diameter (mm): 15
Hexagonal hole (mm): 6
Maximum tensile load (kN): 38.7
Standard installation torque (N m): 25
Maximum shear load (kN): 23.1
Effective embedded depth (mm): 70
Boxed quantity (books): 25

[Specification 2]
European technology certification (ETA-07/0025)
Internal thread type
Boxed

[Material/Finish]
steel
Surface treatment: zinc plating (trivalent chromate treatment)

[Set contents/accessories]
-

【caution】
-
