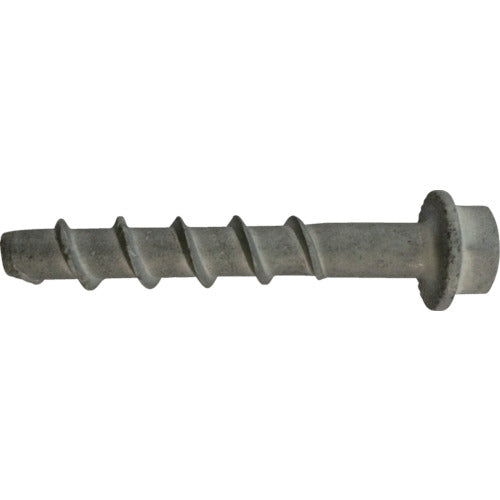

Fisher [Sold out] Fisher Concrete Screw F BS 10X200 (20 pcs) 517893 Fisher

[Features]
This is a high-strength anchor that can be screwed in without the need for hammering.
Possible to cast with an impact wrench.
It is easy to remove after pouring and can also be used for temporary purposes.

[Applications]
For concrete and dense stone.
Installation of various racks.
Facility construction.
Handrail exterior construction, etc.

【specification】
Thread size: M10
Thread length (mm): 200
Total length (mm): 210
Maximum thickness of attachment (mm): 115
Maximum tensile load (kN): 13.5
Maximum shear load (kN): 16.2
Width across flats (mm): 16
Embedded depth (mm): 85
Pilot hole diameter (mm): 10
Number of pieces per box: 20

[Specification 2]
European Technical Approval (ETA-11/0095)
Boxed

[Material/Finish]
steel
Surface treatment: zinc flake coating

[Set contents/accessories]
-

【Note】
-
