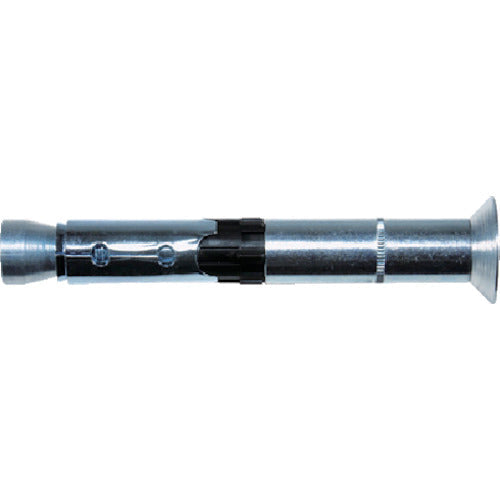

Fisher bolt anchor FH2 18/30 SK A4 (20 pieces)

[Features]
High shear loads due to screw body/sleeve interaction.
Construction is possible with a small number of anchors.
International certifications demonstrate maximum safety and best performance.

[Use]
For concrete and dense stone.
Mounting on various racks.
Equipment work.
Handrail exterior construction, etc.

【specification】
Nominal Thread: M12
Total length (mm): 130
Width across flats dimension (mm): 8
Drill diameter (mm): 18
Pilot hole diameter (mm): 18
Maximum tensile load (kN): 48.5
Standard installation torque (N・m): 100
Maximum shear load (kN): 80.6
Effective embedding depth (mm): 80
Boxed quantity (books): 20

[Specification 2]
European technology certification (ETA-07/0025)
International Standards Council Certification
Boxed

[Material/Finish]
Stainless steel (equivalent to SUS316)

[Set contents/accessories]
-

【caution】
-
