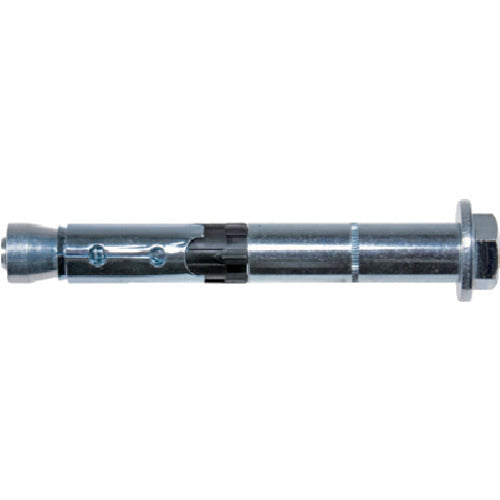

Fisher bolt anchor FH2 10/10 S A4 (50 pieces)

[Features]
High shear loads due to screw body/sleeve interaction.
Construction is possible with a small number of anchors.

[Use]
For concrete and dense stone.
Mounting on various racks.
Equipment work.
Handrail exterior construction, etc.

【specification】
Nominal Thread: M6
Total length (mm): 69
Width across flats (mm): 10
Drill diameter (mm): 10
Maximum tensile load (kN): 14.8
Standard installation torque (N・m): 15
Maximum shear load (kN): 17.7
Effective embedding depth (mm): 80

[Specification 2]
European technology certification (ETA-07/0025)
International Standards Council Certification
Hex head type
Boxed

[Material/Finish]
Stainless steel (equivalent to SUS316)

[Set contents/accessories]
-

【caution】
-
