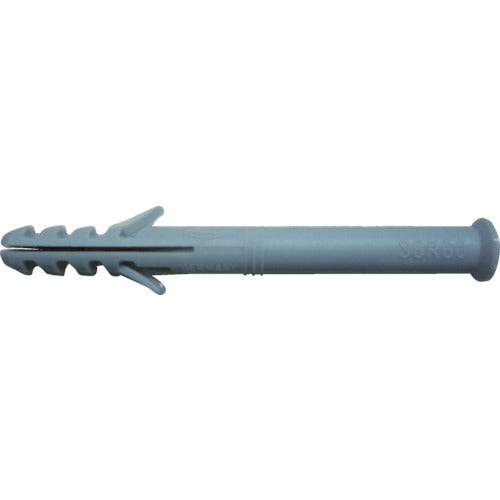

Fisher SR long shaft plug S8R 80 (50 pieces)

[Features]
Fisher S plug long type.
Realize quick work with actual construction.

[Use]
For concrete and ALC.

【specification】
Nominal diameter (mm): 8
Length (mm): 80
Drilling depth (mm): 95
Maximum tensile load (kN): 1.73
Prepared hole diameter (mm) Concrete: 8
Pilot hole diameter (mm) ALC: 8

[Specification 2]
Compatible screws: wood screws, tapping screws

[Material/Finish]
Polyamide Resin PA6 (Nylon 6)

[Set contents/accessories]
-

【Note】
Ordinary concrete Fc 20 N/mm2
Prescribed perforation. (remove chips)
Thread length that protrudes from the tip of the plug by at least the thread diameter.
The load etc. will change depending on various conditions.
It is necessary to consider the safety factor.
