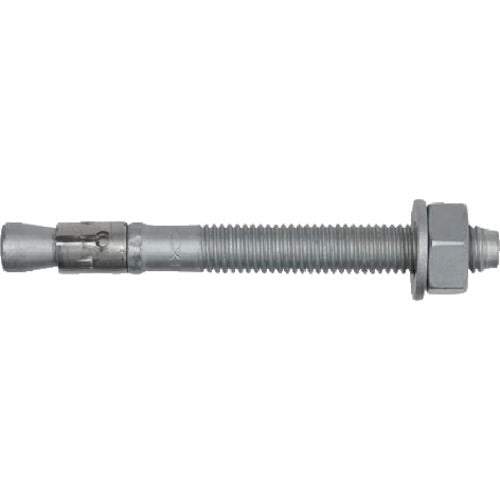

Fisher bolt anchor FBN2 20/30 FVZ (10 pieces)

[Features]
Fisher original construction expansion sleeve allows for the highest load capacity.
Shallow embedment allows shallow drill hole depths, reduces interference with reinforcing bars, and enables quick installation.

[Use]
For concrete and dense stone.
Mounting on various racks.
Equipment work.
Handrail exterior construction, etc.

【specification】
Nominal Thread: M20
Total length (mm): 187
Thread length (mm): 90
Embedded depth (mm): 165
Drill diameter (mm): 20
Pilot hole diameter (mm): 20
Maximum tensile load (kN): 64.8
Standard installation torque (N m): 200
Maximum shear load (kN): 67.0
Effective embedded depth (mm): 105

[Specification 2]
European technical certification (ETA-07/0211)
Boxed

[Material/Finish]
steel
Surface treatment: hot-dip galvanized

[Set contents/accessories]
-
