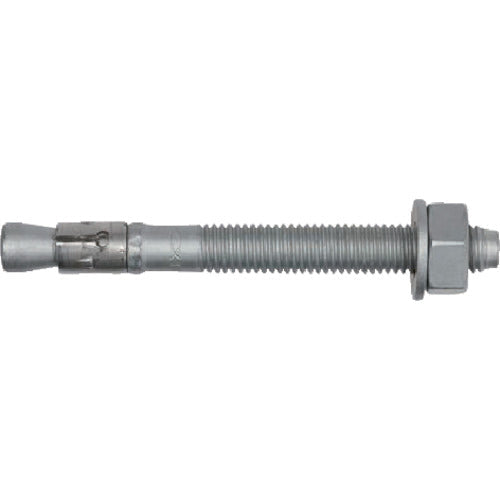

Fisher bolt anchor FBN2 8/5 K FVZ (50 pieces)

[Features]
A wedge type anchor for ordinary concrete with excellent cost performance.
Shallow embedment allows shallow drill hole depths, reduces interference with reinforcing bars, and enables quick installation.
International approvals demonstrate maximum safety and top performance.

[Use]
For concrete and dense stone.
Mounting on various racks.
Equipment work.
Handrail exterior construction, etc.

【specification】
Nominal Thread: M8
Total length (mm): 56
Thread length (mm): 24
Embedded depth (mm): 51
Drill diameter (mm): 8
Pilot hole diameter (mm): 8
Maximum tensile load (kN): 8.2
Standard installation torque (N・m): 15
Maximum shear load (kN): 11.0
Effective embedded depth (mm): 30

[Specification 2]
European technical certification (ETA-07/0211)
Boxed

[Material/Finish]
steel
Surface treatment: hot-dip galvanized

[Set contents/accessories]
-

【caution】
-
