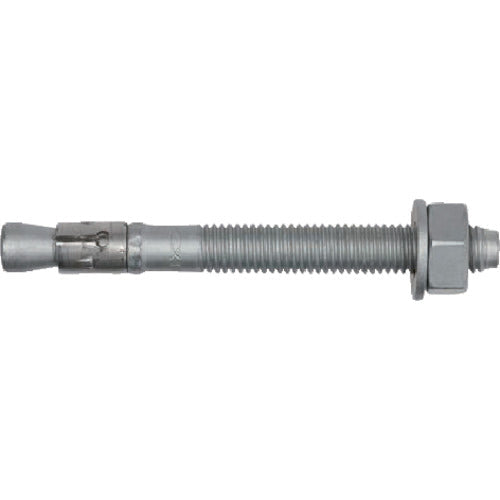

Fisher bolt anchor FBN2 8/50 FVZ (50 pieces)

[Features]
Fisher original construction expansion sleeve allows for the highest load capacity.
Shallow embedment allows shallow drill hole depths, reduces interference with reinforcing bars, and enables quick installation.

[Use]
For concrete and dense stone.
Mounting on various racks.
Equipment work.
Handrail exterior construction, etc.

【specification】
Nominal Thread: M8
Total length (mm): 111
Thread length (mm): 79
Embedded depth (mm): 118
Drill diameter (mm): 8
Pilot hole diameter (mm): 8
Maximum tensile load (kN): 15.0
Standard installation torque (N・m): 15
Maximum shear load (kN): 11.0
Effective embedded depth (mm): 40

[Specification 2]
European technical certification (ETA-07/0211)
Boxed

[Material/Finish]
steel
Surface treatment: hot-dip galvanized

[Set contents/accessories]
-
