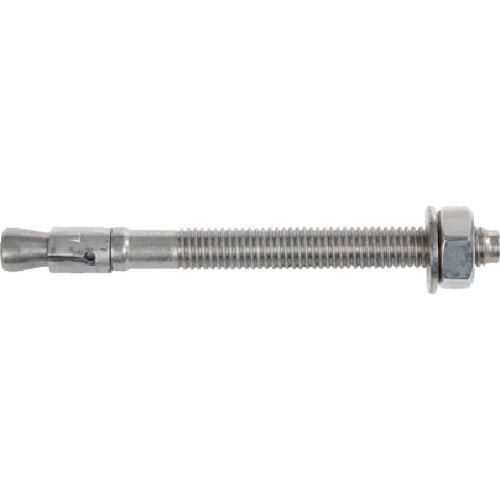

Fisher bolt anchor FBN2 20/60 A4 (10 pieces)

[Features]
A wedge type anchor for ordinary concrete with excellent cost performance.
Shallow embedment allows shallow drill hole depths, reduces interference with reinforcing bars, and enables quick installation.
International certifications demonstrate maximum safety and top performance.

[Use]
For concrete and dense stone.
Mounting on various racks.
Equipment work.
Handrail exterior construction, etc.

【specification】
Nominal Thread: M20
Total length (mm): 217
Thread length (mm): 90
Embedded depth (mm): 195
Drill diameter (mm): 20
Pilot hole diameter (mm): 20
Maximum tensile load (kN): 76.8
Standard installation torque (N・m): 150
Maximum shear load (kN): 86.0
Effective embedded depth (mm): 105

[Specification 2]
European technical certification (ETA-07/0211)
Boxed

[Material/Finish]
Stainless steel (equivalent to SUS316)

[Set contents/accessories]
-

【Note】
-
