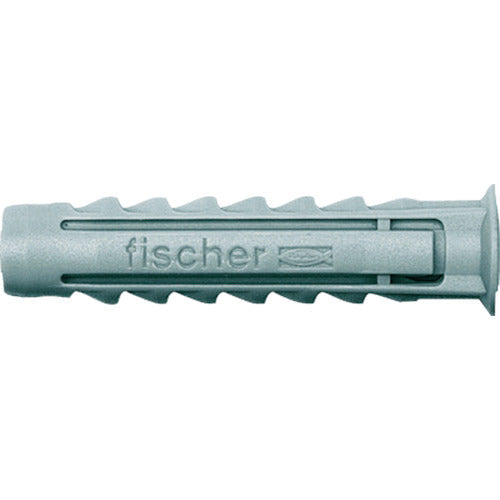

Fisher SX plug SX 8x40 (100 pieces)

[Features]
Strong grip with 4-way expansion and fixation.
Corresponds to the revision of the "Notice on measures to prevent overturning" of hot water supply equipment.

[Use]
Construction on concrete, ALC, stone, brick, hollow base material, and gypsum board.

【specification】
Nominal diameter (mm): 8
Length (mm): 40
Drilling depth (mm): 50
Maximum tensile load (kN): 5.18
Compatible screw (mm): 4.5 to 6
Prepared hole diameter (mm) Concrete: 8
Pilot hole diameter (mm) ALC: 8

[Specification 2]
Compatible screws: wood screws, tapping screws
Boxed

[Material/Finish]
Polyamide resin PA6 (Nylon 6)

[Set contents/accessories]
-

【caution】
The maximum tensile load is the value when the concrete strength is Fc20N/m [[M2]].
