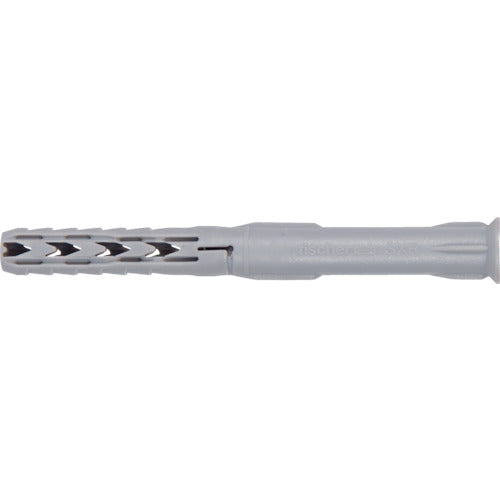

Fisher SXR long shaft plug SXR 8 x 100 (100 pieces)

[Features]
It is the first long shaft type to acquire European technical certification.
Anti-rotation works optimally on many building materials.
The unique shape reduces bending at the time of driving.

[Use]
For concrete and ALC.

【specification】
Nominal diameter (mm): 8
Length (mm): 100
Drilling depth (mm): 110
Maximum tensile load (kN): 3.7
Prepared hole diameter (mm) Concrete: 8
Pilot hole diameter (mm) ALC: 8

[Specification 2]
Compatible screws: wood screws, tapping screws

[Material/Finish]
Polyamide Resin PA6 (Nylon 6)

[Set contents/accessories]
-

【Note】
Ordinary concrete Fc 20 N/mm2
Prescribed perforation. (remove chips)
Thread length that protrudes from the tip of the plug by at least the thread diameter.
The load etc. will change depending on various conditions.
It is necessary to consider the safety factor.
