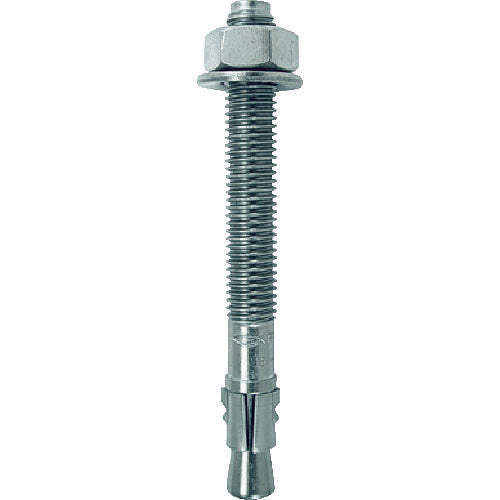

Fisher bolt anchor FBN2 6/10 A4 (100 pieces)

[Features]
A wedge type anchor for ordinary concrete with excellent cost performance.
Shallow embedment allows shallow drill hole depths, reduces interference with reinforcing bars, and enables quick installation.
International certifications demonstrate maximum safety and top performance.

[Use]
For concrete and dense stone.
Mounting on various racks.
Equipment work.
Handrail exterior construction, etc.

【specification】
Nominal Thread: M6
Total length (mm): 55
Thread length (mm): 17
Embedded depth (mm): 50
Drill diameter (mm): 6
Pilot hole diameter (mm): 6
Tensile maximum load (kN): 9.0
Standard installation torque (N・m): 4
Maximum shear load (kN): 5.3
Effective embedded depth (mm): 30

[Specification 2]
European technical certification (ETA-07/0211)
Boxed

[Material/Finish]
Stainless steel (equivalent to SUS316)

[Set contents/accessories]
-

【Note】
-
