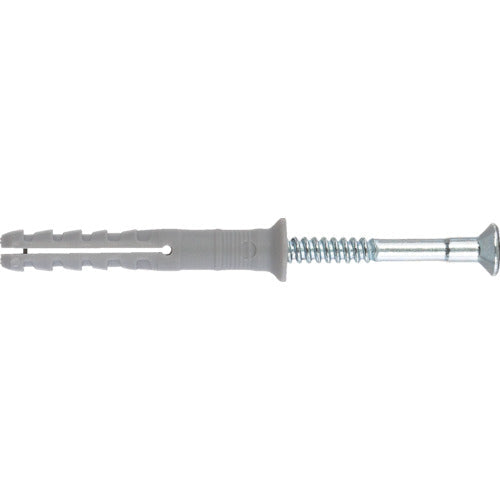

Fisher N HAMMER CASTER Fix N6 x 40/10S A2 (50 pieces)

[Features]
The plug head has a trumpet shape.
A screw is set in the plug.
Realizes quick work just by tapping.
Drive-in stopper reduces plug expansion during drive-in.

[Use]
For ALC and concrete.

【specification】
Outer diameter (mm): 6
Length (mm): 40
Maximum mounting thickness (mm): 10
Drilling depth (mm): 75
Maximum tensile load (kN): 1.4
Prepared hole diameter (mm) Concrete: 6
Pilot hole diameter (mm) ALC: 6

[Specification 2]
Drive-in type resin plug

[Material/Finish]
Body: Polyamide resin PA6 (nylon 6)
Screw: Stainless

[Set contents/accessories]
-

【Note】
Ordinary concrete Fc 20 N/mm2
Prescribed perforation. (remove chips)
Thread length that protrudes from the tip of the plug by at least the thread diameter.
The load etc. will change depending on various conditions.
It is necessary to consider the safety factor.
