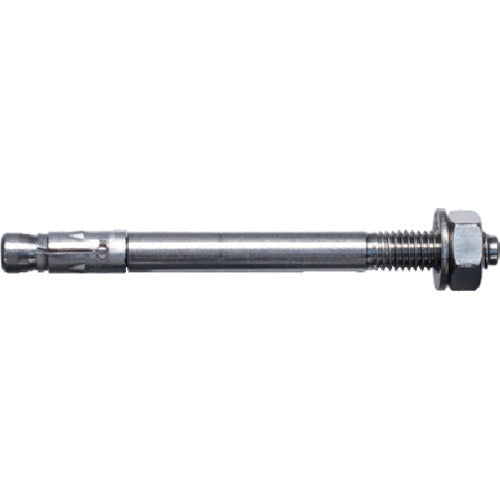

Fisher bolt anchor FAZ2 8/30 C4 (10 pieces)

[Features]
Fisher original construction expansion sleeve allows for the highest load capacity.
Shallow embedment allows shallow drill hole depths, reduces interference with reinforcing bars, and enables quick installation.
International certifications demonstrate maximum safety and top performance.

[Use]
For concrete and dense stone.
Mounting on various racks.
Equipment work.
Handrail exterior construction, etc.

【specification】
Nominal Thread: M8
Total length (mm): 95
Thread length (mm): 58
Embedded depth (mm): 85
Drill diameter (mm): 8
Pilot hole diameter (mm): 8
Maximum tensile load (kN): 4.3
Standard installation torque (N・m): 20
Maximum shear load (kN): 10.1
Effective embedded depth (mm): 45

[Specification 2]
European technology certification (ETA-05/0069)
Boxed

[Material/Finish]
High corrosion resistance stainless steel (equivalent to SUS836L)

[Set contents/accessories]
-

【Note】
-
