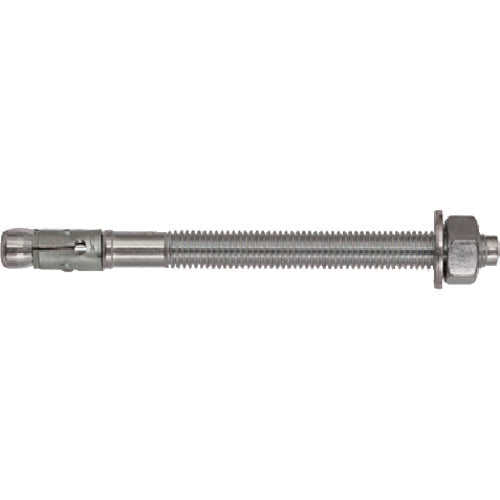

Fisher bolt anchor FAZ2 24/30 A4 (4 pieces)

[Features]
Fisher original construction expansion sleeve allows for the highest load capacity.
Shallow embedment allows shallow drill hole depths, reduces interference with reinforcing bars, and enables quick installation.
International certifications demonstrate maximum safety and top performance.

[Use]
For concrete and dense stone.
Mounting on various racks.
Equipment work.
Handrail exterior construction, etc.

【specification】
Nominal Thread: M24
Total length (mm): 205
Thread length (mm): 58
Embedded depth (mm): 185
Drill diameter (mm): 24
Pilot hole diameter (mm): 24
Maximum tensile load (kN): 33.6
Standard installation torque (N・m): 270
Maximum shear load (kN): 79.0
Effective embedded depth (mm): 125

[Specification 2]
European technology certification (ETA-05/0069)
Boxed

[Material/Finish]
Stainless steel (equivalent to SUS316)

[Set contents/accessories]
-

【Note】
-
