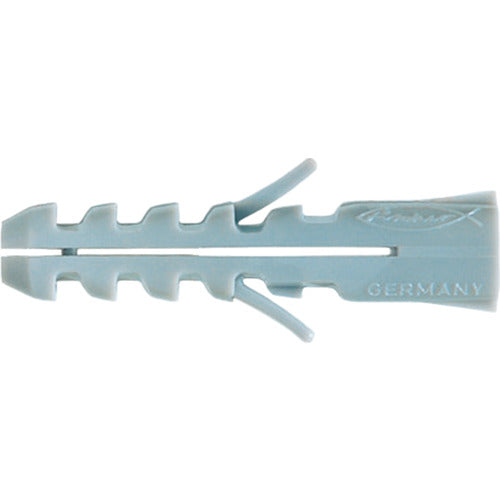

Fisher [Sold out] Fisher S Plug S10 10x50 (50pcs) 50110 Fisher

[Features]
It has a wide range of heat and cold resistance from -40 to 80°C.

[Applications]
For application on concrete, ALC, stone and brick.

【specification】
Nominal diameter (mm): 10
Length(mm):50
Drilling depth (mm): 70
Maximum tensile load (kN): 8.2
Pilot hole diameter (mm) concrete: 10
Pilot hole diameter (mm) ALC: 10
Suitable thread (mm): 6 to 8

[Specification 2]
Suitable screws: wood screws, tapping screws
Boxed

[Material/Finish]
Polyamide resin PA6 (nylon 6)

[Set contents/accessories]
-

【Note】
The maximum tensile load is the value when the concrete strength Fc is 12N/m[[square meter]].
