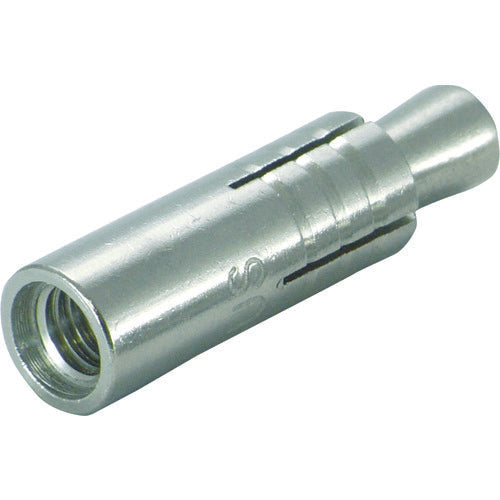

Unika root cut anchor stainless steel CAS type 48 CAS

[Features]
There are no projections on the concrete surface after construction, and it is possible to construct hexagon bolts, insert bars, hanging bolts, etc.

[Use]
Air conditioning work, signboard installation work, interior and exterior work, electrical installation work, wiring work, etc.

【specification】
Nominal Thread: W1/2
Overall length (mm): 50
Outer diameter (mm): 17.5
Thread length (mm): 22
Drill diameter (mm): 18.0
Maximum tensile load (kN): 32.4

[Specification 2]
Boxed

[Material/Finish]
stainless

[Set contents/accessories]
-

【Note】
The maximum tensile load is the value when the concrete strength is Fc21N/[[MM2]].
