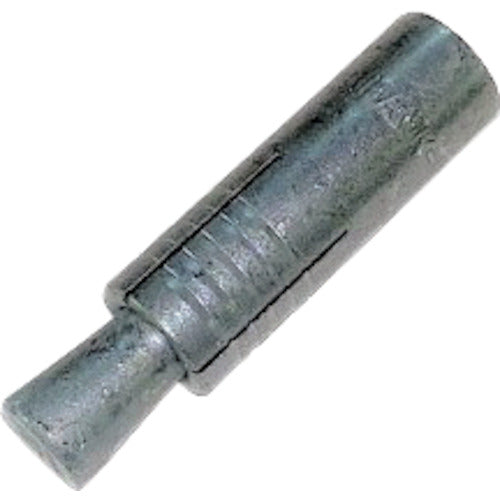

HAWK Hawk Cut Anchor CA Type Hot Dip Galvanized 48CA Youyu Aen Plating HAWK

[Features]
This is a representative "female thread type" product.

[Applications]
For concrete.
For installation in architecture, civil engineering, electricity, lighting, machinery, signs, etc.

【specification】
Thread size: W1/2
Outer diameter (mm): 17.5
Total length (mm): 52
Thread length (mm): 20
Drill diameter (mm): 18.0
Maximum tensile load (kN): 27.0
Sleeve length (mm): 52
Pilot hole diameter (mm): 18.0

[Specification 2]
Boxed

[Material/Finish]
steel
Surface treatment: hot-dip galvanized

[Set contents/accessories]
-

【Note】
The maximum tensile load is the value when the concrete strength is Fc18N/m [m2].
