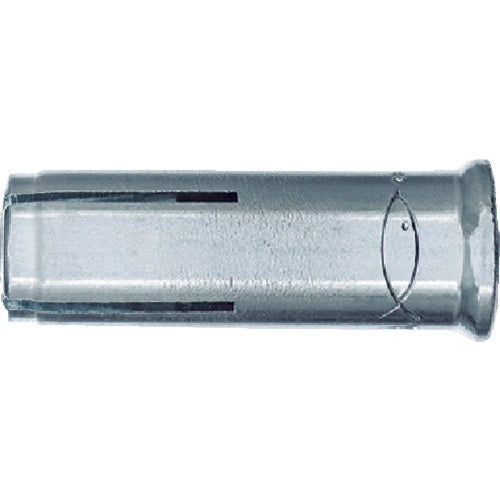

Fisher driven metal anchor EA2 M8X30GVZ (100 pieces)

[Features]
An internal cone drive type female screw anchor.
After setting and expanding the anchor with a combination of HAMMER CASTER and a special setting tool (EHS Plus Setting Tool), the construction completion can be confirmed by being engraved on the collar of the main unit.

[Use]
For concrete and stone.

【specification】
Nominal Thread: M8
Total length (mm): 30
Thread length (mm): 14
Drill diameter (mm): 10
Maximum tensile load (kN): 4
Pilot hole diameter (mm): 10
Drilling depth (mm): 33

[Specification 2]
Boxed
Internal cone driven metal anchor

[Material/Finish]
steel

[Set contents/accessories]
-

【caution】
-
