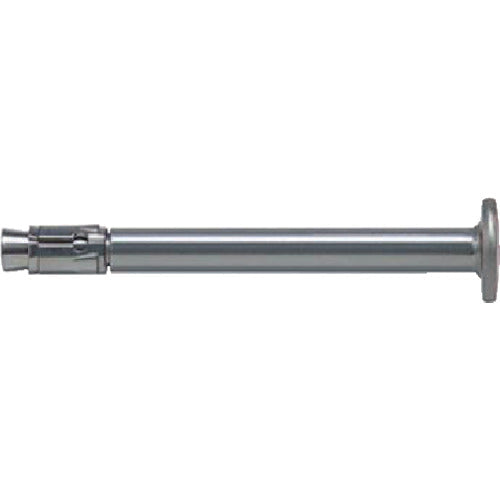

Fisher nail anchor FNA2 6X30/50 A4 (50 pieces)
お気に入り機能をご利用いただくにはログインが必要です。
閉じる
【order ID】7793588
【basic item number】46024
【brand name】Fisher
【minimum order quantity】1Box
【packages】1
【manufacturer name】fischer holding GmbH & Co.
【Country of origin】Germany
【Weight】1082G
[Features]
Easy to install, just drill and drive.
[Use]
For suspended ceilings, pipelines, cable ducts, wall boards, windows, fire boards, etc.
【specification】
Nominal Thread: M6
Total length (mm): 85
Drill diameter (mm): 6
Maximum tensile load (kN): 6.8
Pilot hole diameter (mm): 6
Maximum shear load (kN): 7.0
Effective embedded depth (mm): 30
Embedded depth (mm): 90
[Specification 2]
Internationally certified product
Boxed
[Material/Finish]
Stainless steel (equivalent to SUS316)
[Set contents/accessories]
-
【caution】
-
Easy to install, just drill and drive.
[Use]
For suspended ceilings, pipelines, cable ducts, wall boards, windows, fire boards, etc.
【specification】
Nominal Thread: M6
Total length (mm): 85
Drill diameter (mm): 6
Maximum tensile load (kN): 6.8
Pilot hole diameter (mm): 6
Maximum shear load (kN): 7.0
Effective embedded depth (mm): 30
Embedded depth (mm): 90
[Specification 2]
Internationally certified product
Boxed
[Material/Finish]
Stainless steel (equivalent to SUS316)
[Set contents/accessories]
-
【caution】
-
