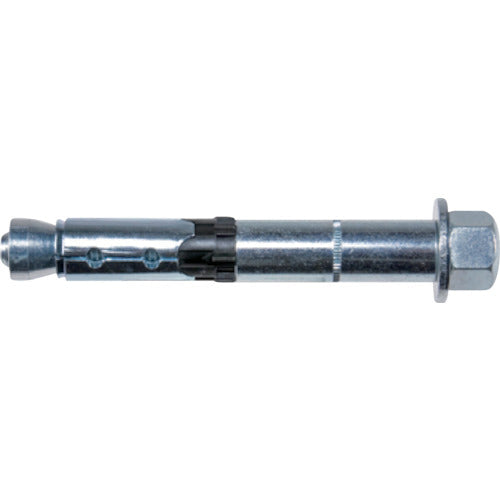

Fisher bolt anchor FH2 15/10 H (25 pieces)

[Features]
High shear loads due to screw body/sleeve interaction.
Construction is possible with a small number of anchors.
International certifications demonstrate maximum safety and best performance.

[Use]
For concrete and dense stone.
Mounting on various racks.
Equipment work.
Handrail exterior construction, etc.

【specification】
Nominal Thread: M10
Total length (mm): 115
Width across flats (mm): 17
Drill diameter (mm): 15
Maximum tensile load (kN): 35.8
Standard installation torque (N・m): 40
Maximum shear load (kN): 52.7
Effective embedded depth (mm): 70
Boxed quantity (books): 25

[Specification 2]
European technology certification (ETA-07/0025)
International Standards Council Certification
Boxed

[Material/Finish]
steel
Surface treatment: zinc plating (trivalent chromate treatment)

[Set contents/accessories]
-

【caution】
-
