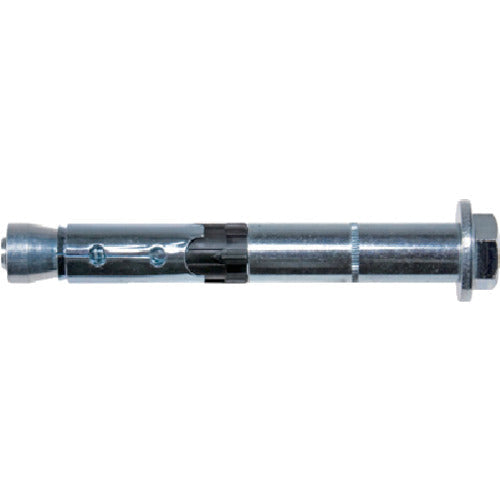

Fisher bolt anchor FH2 24/50 S (10 pieces)

[Features]
High shear loads due to screw body/sleeve interaction.
Construction is possible with a small number of anchors.

[Use]
For concrete and dense stone.
Mounting on various racks.
Equipment work.
Handrail exterior construction, etc.

【specification】
Nominal Thread: M16
Total length (mm): 185
Width across flats (mm): 24
Embedded depth (mm): 175
Drill diameter (mm): 24
Pilot hole diameter (mm): 24
Maximum tensile load (kN): 71.7
Standard installation torque (N・m): 160
Maximum shear load (kN): 143.4
Effective embedding depth (mm): 100

[Specification 2]
European technology certification (ETA-07/0025)
International Standards Council Certification
Hex head type
Boxed

[Material/Finish]
steel
Surface treatment: zinc plating (trivalent chromate treatment)

[Set contents/accessories]
-

【caution】
-
