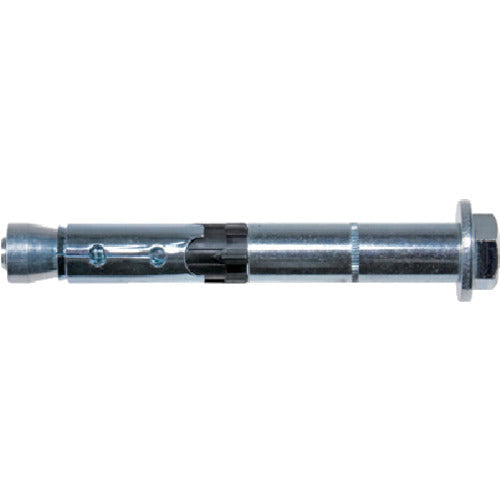

Fisher bolt anchor FH2 12/50 S (25 pieces)

[Features]
High shear loads due to screw body/sleeve interaction.
Construction is possible with a small number of anchors.

[Use]
For concrete and dense stone.
Mounting on various racks.
Equipment work.
Handrail exterior construction, etc.

【specification】
Nominal Thread: M8
Total length (mm): 130
Width across flats (mm): 13
Embedded depth (mm): 130
Drill diameter (mm): 12
Pilot hole diameter (mm): 12
Maximum tensile load (kN): 28.5
Standard installation torque (N・m): 22.5
Maximum shear load (kN): 42.4
Effective embedding depth (mm): 60

[Specification 2]
European technology certification (ETA-07/0025)
International Standards Council Certification
Hex head type
Boxed

[Material/Finish]
steel
Surface treatment: zinc plating (trivalent chromate treatment)

[Set contents/accessories]
-

【caution】
-
