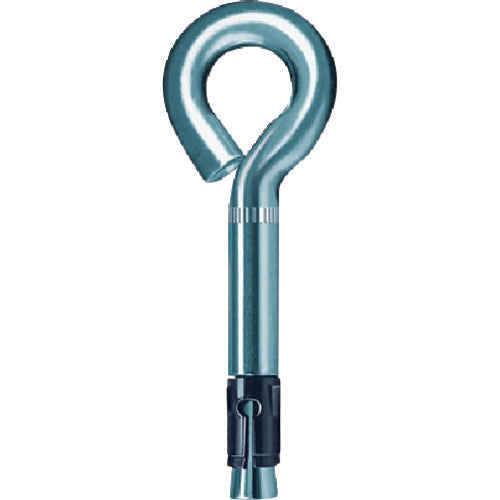

Fisher nail anchor FNA2 6X25 OE (50 pieces)

[Features]
It is easy to install, just drill a hole and drive in with HAMMER CASTER.

[Use]
For suspended ceilings, pipelines, cable ducts, wall boards, windows, fire boards, etc.

【specification】
Type: Eye type
Nominal Thread: M6
Total length (mm): 54
Drill diameter (mm): 6
Hook inner diameter (mm): -
Eye inner diameter (mm): 10
Maximum tensile load (kN): 5.9
Pilot hole diameter (mm): 6
Maximum shear load (kN): 0.7
Effective embedded depth (mm): 25
Embedded depth (mm): 35
Boxed quantity (books): 50

[Specification 2]
Eye type obtained European Technical Approval (ETA)
Boxed

[Material/Finish]
steel
Surface treatment: zinc plating (trivalent chromate treatment)

[Set contents/accessories]
-

【caution】
-
