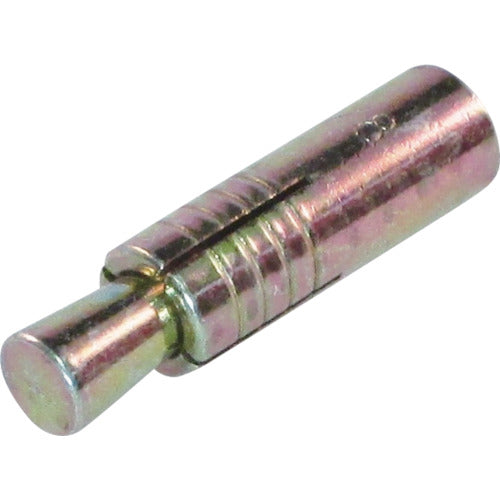

HAWK Hawk Cut Anchor CA Type Steel 38CA HAWK

[Features]
This is a representative "female thread type" product.

[Applications]
For concrete. For installation on architecture, light ceilings, temporary scaffolding, civil engineering, electrical engineering, air conditioning, machinery, signs, etc.
For installation in architecture, civil engineering, electricity, lighting, machinery, signs, etc.

【specification】
Thread size: W3/8
Outer diameter (mm): 14.0
Total length (mm): 40
Thread length (mm): 14
Drill diameter (mm): 14.5
Maximum tensile load (kN): 19.0

[Specification 2]

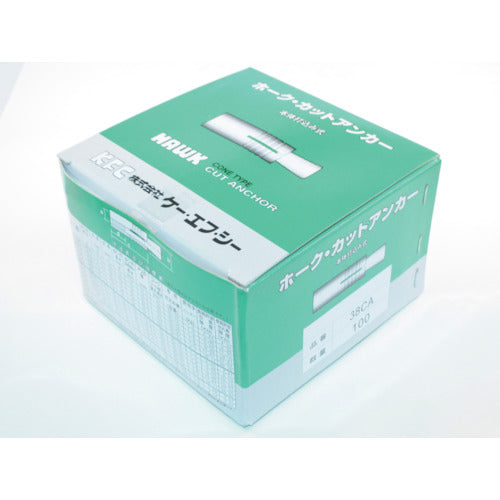

Boxed

[Material/Finish]
steel
Surface treatment: electro-galvanized

[Set contents/accessories]
-

【Note】
The maximum tensile load is the value when the concrete strength is Fc18N/[mm2].
