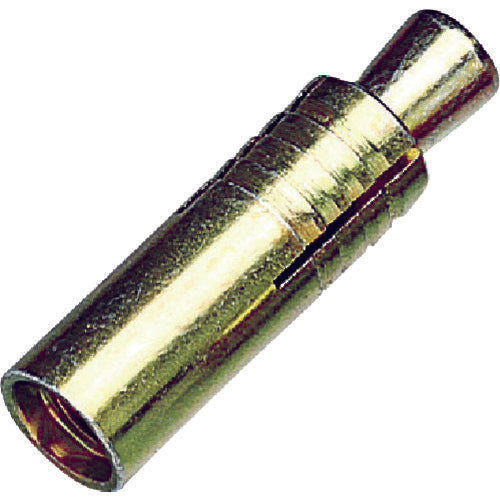

UNIKA Rooty Cut Anchor CA Type 38CA 38CA UNIKA

[Features]
There are no protrusions on the concrete surface after construction, making it possible to install hexagonal bolts, insert bars, hanging bolts, etc.

[Applications]
For concrete.
Air conditioning work, sign installation work, interior and exterior work, electrical work, piping work, etc.

【specification】
Thread size: W3/8
Outer diameter (mm): 14.0
Total length (mm): 40
Thread length (mm): 14
Drill diameter (mm): 14.5
Maximum tensile load (kN): 24.3

[Specification 2]

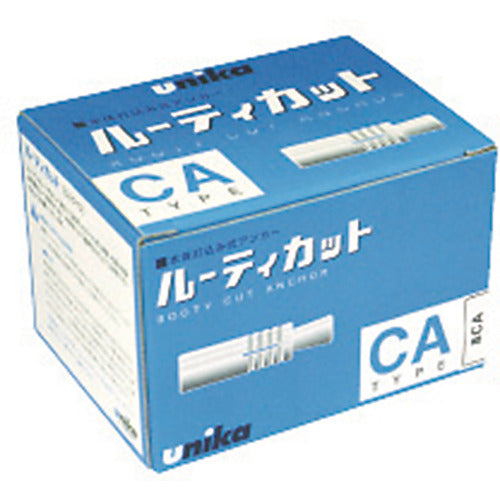

Boxed

[Material/Finish]
steel

[Set contents/accessories]
-

【Note】
The maximum tensile load is the value when the concrete strength is Fc21N/[mm2].
