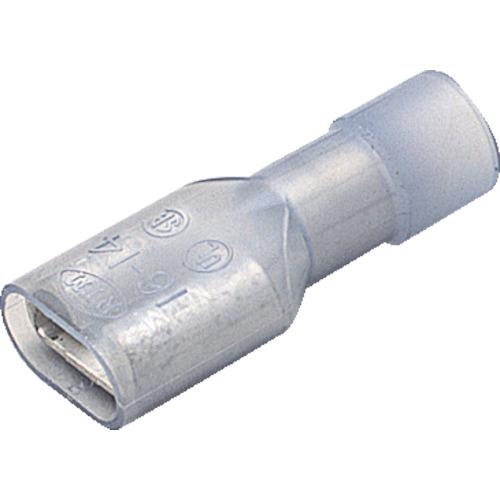

TRUSCO plug-in type connection terminal W8.9 with insulation coating (15 pieces included)

[Features] ● Insulated contact area.

[Applications] ● For locations where copper wire mating is required.

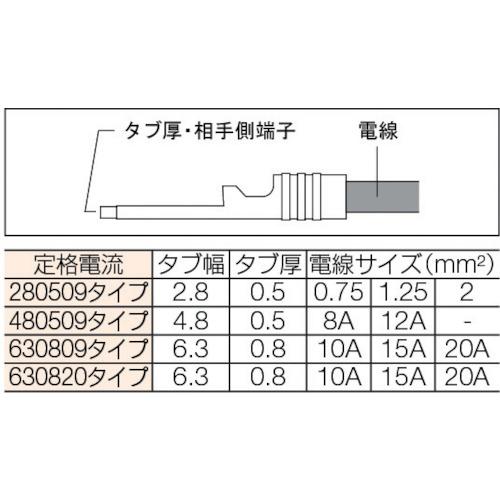

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 0.75 to 1.25 ● Color: red transparent ● Shape: plug-in type ● F (mm): 6.8 ● Total length (mm): 21 ● Internal dimensions (mm) ): 4.1 Wire coupling range AWG: 18-16

[Specification 2] Rated voltage: 300V

[Material/Finish] Connector: Brass (C2600)/Electric tin plating Insulator: Nylon

[Set contents/accessories]
-

【Note】
-
