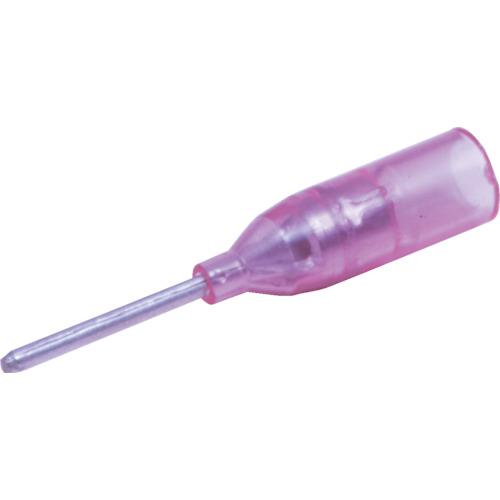

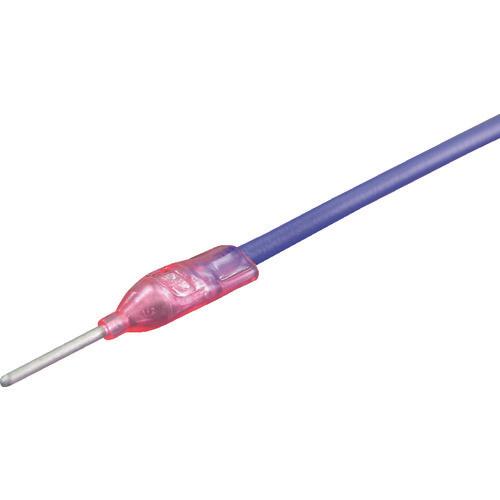

[Features]- The rod part is located in the center of the terminal, and the insulating coating fits inside the device. ●Compatible with terminal block minimum pitch of 4.8mm.
[Applications] ●For narrow pitch terminal blocks and various switches.
[Specifications] Color: red transparent Total length (mm): 27 Internal dimensions (mm): 3.6 F (mm): 11 Wire coupling range Stranded wire ([[MM2]]): 0.3 to 1.65 Wire coupling Range AWG: 22-16 ●Shape: Pin bar type ●Applicable tools: Crimp terminals with insulation coating, tools for sleeves
[Specification 2] Rated voltage: 300V
[Material/Finish] ●Terminal: Oxygen-free copper (C1020)/Electric tin plating ●Insulator: PVC
