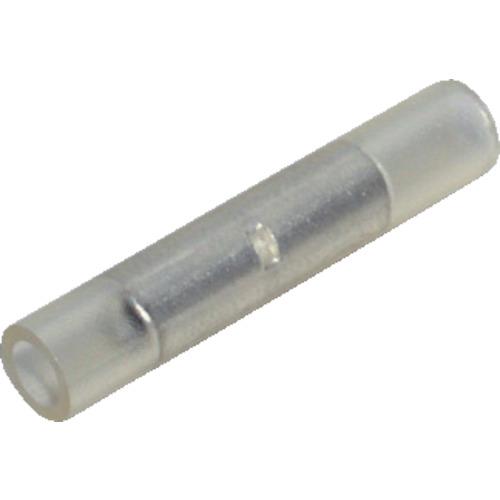

TRUSCO crimp sleeve stranded wire with insulation coating 2.63-6.64 mm 2B type 10 pieces

[Features]● Combining insulation coating for butting crimp sleeves.

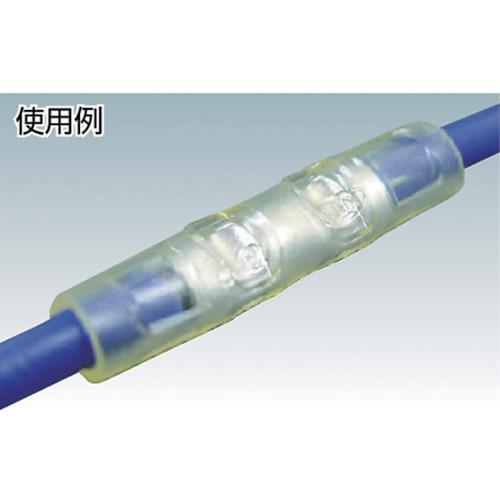

[Applications] ● B-shaped sleeve with insulating coating that crimps and connects wires inserted from both sides of the sleeve.

[Specifications] ● Wire coupling range Stranded wire ([[MM2]]): 2.63 to 6.64 ● Color: Silver ● Overall length (mm): 27.5 ● Inner dimension (mm): 3.5 ● L (mm): 27.5 ● JIS standard product : × ● Wire coupling range Single wire mm: - Wire coupling range AWG: 12-10 d (mm): 3.4

[Specification 2] ●B type ●Applicable tools: Crimp terminals with insulation coating, tools for sleeves

[Material/Finish] ●Sleeve: Oxygen-free copper (C1020)/Electrotin plating ●Insulator: Vinyl chloride

[Set contents/accessories]
-

【Note】
-
